Sprinklers Explained
A small sprinkler head. A whole system behind it.
Fire sprinkler work combines design, water-supply calculations, installation, trade coordination, testing, and approvals. Every building brings a different set of conditions.
What you see—and what you don’t
The sprinkler on the ceiling is the final outlet. Behind it are pipes, supports, valves, drains, gauges, and connections that must work together.
1. Understand the building
How a space is used, what is stored, ceiling heights, and freezing conditions help determine the protection it needs.
2. Make the water reach the fire
Hydraulic calculations check flow and pressure. Think of running several hoses at once: pipe size, distance, and the available water supply affect what reaches each outlet.
3. Fit around every other trade
Our piping shares space with structure, ductwork, lighting, and ceilings. Moving a pipe or changing a ceiling can require another look at the layout and calculations.
4. Prove the system is ready
Installation is followed by required tests, inspections, documentation, and local approval. Those steps need time in the construction schedule.
Why early coordination matters
Give us current plans, building use, water-supply information, and the construction schedule early. Changes to storage, ceilings, or room layouts can change the sprinkler scope.

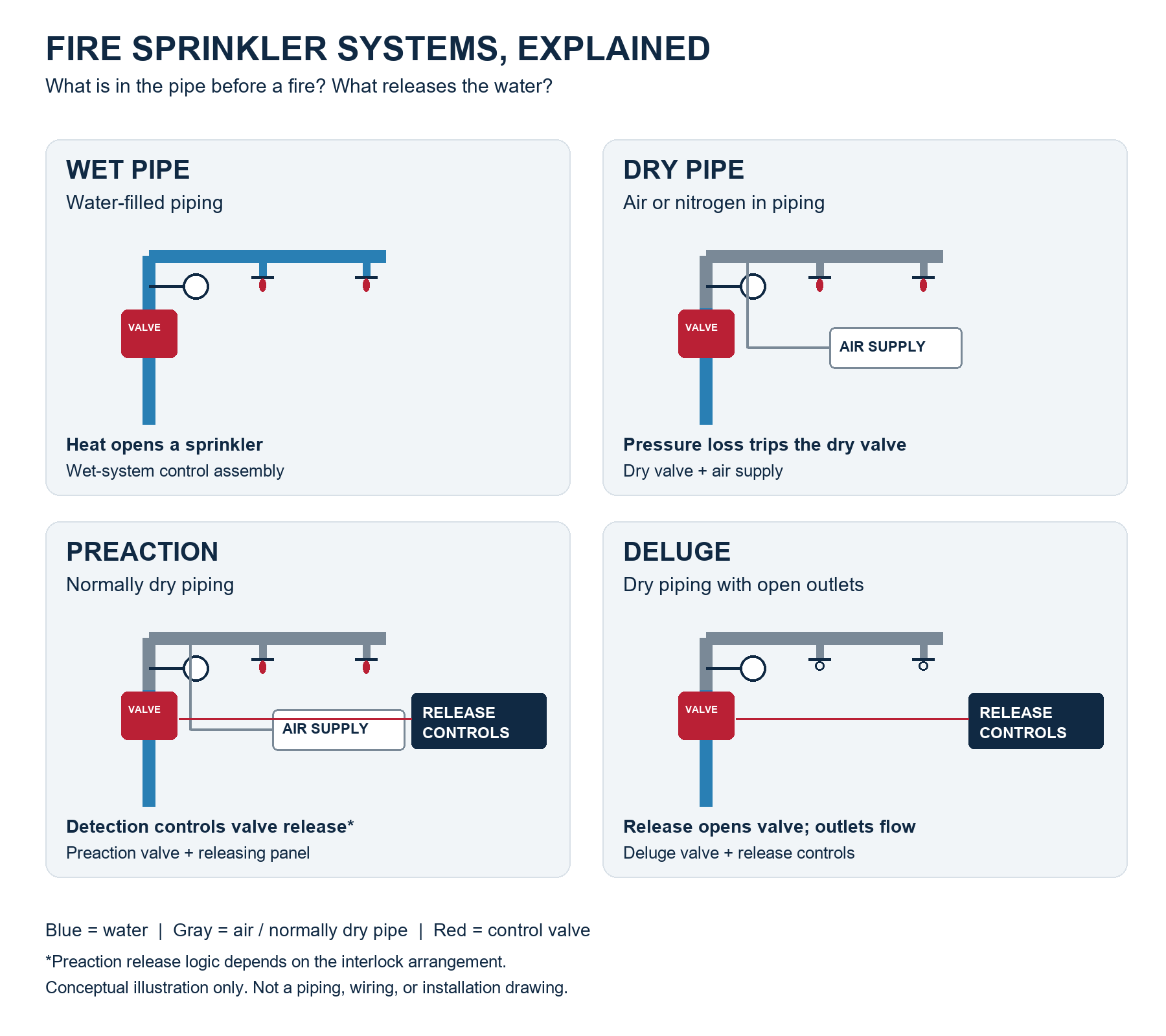

Which system is which?
The main difference is what is in the pipes before a fire—and what opens the water valve.
Wet pipe: water is already there
The piping stays filled with water. Heat opens an individual automatic sprinkler, allowing water to discharge. Common in heated buildings.
Riser clues: water-supply control valve, gauges, flow detection, and test/drain fittings. An alarm check valve may be part of the arrangement.
Dry pipe: air first, then water
Air or nitrogen holds a dry valve closed. When a sprinkler opens, pressure drops, the valve trips, and water enters the piping. Used where piping may freeze.
Riser clues: dry valve, air-supply equipment, pressure gauges, and additional trim and drainage provisions.
Preaction: a detection step controls the valve
A separate detection system participates in opening the preaction valve. Single-interlock systems admit water after detection; double-interlock systems require both detection and sprinkler operation. Water discharges through opened automatic sprinklers.
Riser clues: preaction valve, releasing panel and detection connections, specialized trim, and air supervision as applicable.
Deluge: open outlets discharge together
The outlets are already open. A release system opens the deluge valve so water flows through the outlets in that zone. Used for particular hazards that need broad water application.
Riser clues: deluge valve and release trim, plus the detection/release arrangement. The open outlets distinguish it from typical preaction.
A riser is the system’s control point
It connects the water supply to the sprinkler piping and groups valves, gauges, and testing connections. Exact hardware varies by manufacturer and system design; appearance alone does not confirm the system type.
Typical automatic sprinklers react to heat—not simply smoke. They generally operate individually. Deluge systems are different.
Learn more: NFSA system types · NFPA 13
Riser parts, in everyday words
Control valve: the water on/off point. It must stay in its proper operating position.
Check valve: helps keep water flowing in the intended direction.
Pressure gauge: shows how hard the water or air is pushing.
Flow switch: senses water movement and sends a signal to the alarm system.
Test and drain: lets trained technicians test a flow signal or drain piping.
Fire department connection: a connection firefighters can use to supply additional water.
Dry/preaction equipment: adds air supply, specialized valves, and release or supervision controls.
Capacity: enough water with enough push
Flow is the amount of water moving. We measure it in gallons per minute (GPM). Pressure is the push behind it. We measure it in pounds per square inch (PSI).
Think of a garden hose: a lot of water with too little push may not reach where it is needed. A high pressure reading alone also does not prove enough water will flow.
System capacity depends on the water supply, pipe sizes and lengths, elevation, valves, and the sprinkler demand calculated for the building. A larger pipe or more sprinkler heads does not tell the whole story.
Simple takeaway: the design must deliver the required water at the required pressure. Plans, water-supply data, and calculations confirm that—not appearance alone.
